技术参数 |
Specifications |
Units |

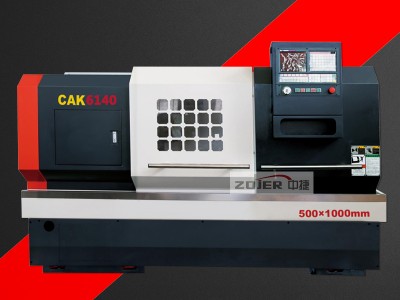

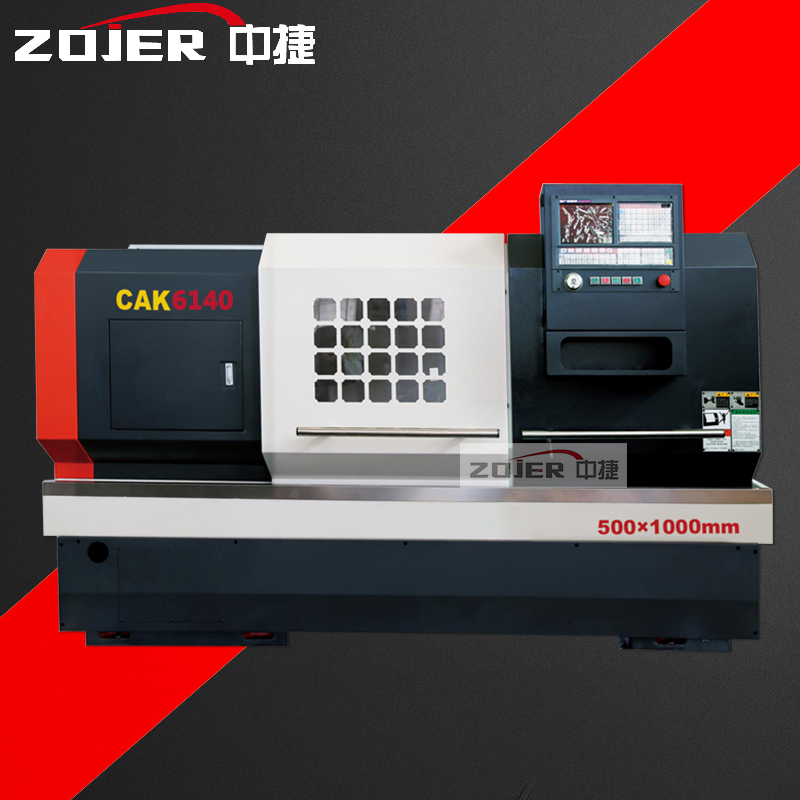

CAK6140 |
CAK6150 |
CAK6161 |
CAK6166 |
CAK6180 |
||||||
|
床身上最大回转直径 |
Max.swing over bed |
mm |
400 |
500 |
610 |
660 |
800 |
||||||
|
最大加工长度 |
Max.processing length |
mm |
750/1000/1500/2000/3000 |
||||||||||
|
主轴锥度 |
Spindle taper |
|
MT6(Ø90 1:20 for B)[Ø113 1:20 for C] |
||||||||||
|
卡盘尺寸 |
Chuck size |
mm |
C6(D8)[D8] |
||||||||||
|
主轴通孔直径 |
Spindle bore |
mm |
52(80 for B)[105 for C] |
||||||||||
|
主轴转速 3档 （自动变速） |
Spindle speed 3 steps (auto change gear) |
rpm |
Independent spindle:100-1600 21-1500(I:21-150,II:66-500,III:162-1500) |
||||||||||
|
尾座套筒行程 |
Tailstock sleeve travel |
mm |
150 |
||||||||||
|
尾座套筒锥度 |
Tailstock sleeve taper |
|
MT5 |
||||||||||
|
定位精度 |
Position accuracy |
mm |
±0.015 |
||||||||||
|
重复定位精度 |
Repositioning accuracy |
mm |
±0.006 |
||||||||||
|
X/Z快移速度 |
X/Z axis rapid traverse |
m/min |
4/6 |
||||||||||
|
主轴功率 |
Spindle motor |
kw |
7.5 |
11 |
|||||||||
|
包装尺寸 |
Machine dimension for 750 |
mm |
2550x1550x1700 |
2550x1550x1900 |
|||||||||
|
Machine dimension for 1000 |
mm |
2750x1550x1700 |
2750x1550x1900 |
||||||||||
|
Machine dimension for 1500 |
mm |
3250x1550x1700 |
3250x1550x1900 |
||||||||||
|
Machine dimension for 2000 |
mm |
3700x1550x1700 |
3700x1550x1900 |
||||||||||
|
Machine dimension for 3000 |
mm |
4710x1550x1700 |
4710x1550x1900 |
||||||||||
|
重量 |
Machine weight for 750 |
kg |
2100/2800 |
2120/2900 |
2250/2850 |
2300/2900 |
2400/3000 |
||||||
|
Machine weight for 1000 |
kg |
2200/2900 |
2240/3000 |
2400/3000 |
2450/3050 |
2550/3150 |
|||||||
|
Machine weight for 1500 |
kg |
2300/3150 |
2350/3200 |
2600/3200 |
2650/3250 |
2750/3350 |
|||||||
|
Machine weight for 2000 |
kg |
2700/3350 |
2740/3400 |
2830/3400 |
2880/3450 |
2980/3550 |
|||||||
|
Machine weight for 3000 |
kg |
3500/4100 |
3600/4200 |
3650/4250 |
3700/4300 |
3800/4400 |
|||||||
